Fire Alarm System

YBO-R/SCI(WHT)

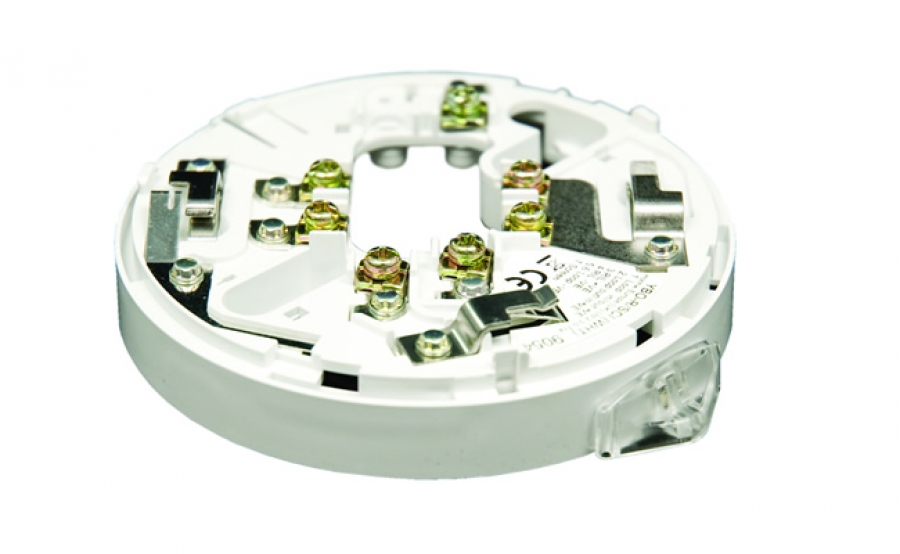

Model YBO-R/SCI(WHT) is a Loop Isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The YBO-R/SCI(WHT) Base is compatible with any of the ESP Sensors, and can be used instead of the standard YBN-R/3 Base, this reduces the cost of the Short Circuit Isolators and improves the functionality. The Base incorporates an amber LED to show when it is isolating a section of the loop, and if used under every analogue Sensor on the loop, none would be lost if a single short circuit was to occur.

The YBO-R/SCI(WHT) does not use an address, and has the same wiring configuration as the YBN-R/3 Sensor Base making it very simple to install. The YBO-R/SCI(WHT) can also be used without a Sensor; a cover (SI-CAP(WHT)) can be fitted to conceal the wiring connections.

  • Detects short circuits on loop
  • Status LED
  • Connection of up to 127 per loop
  • Supports ESP devices
  • Quick connection via square cable clamps
  • Available as a DIN Rail Module
  • Available in RED for use with CHQ-WS2 Wall Sounder & CHQ-WSB Wall Sounder Beacon
  • Approved by LPCB & VdS

Certificates
