Fire Alarm System

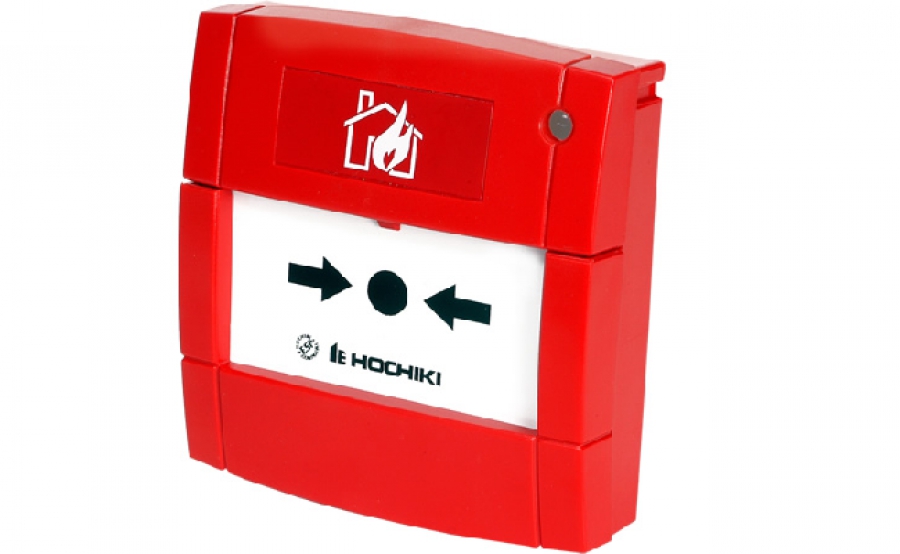

HCP-E(SCI)

Addressable Call Point with SCI Red

Model HCP-E(SCI) is a Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol.  The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-E(SCI) is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.

The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt.  A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.

The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing.  The unit can be flush mounted as supplied.  For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately).  An optional glass element is also available.

*Fire alarm control panel compatibility is required for this feature.

  • Fast response
  • Integral short-circuit isolator
  • Bi-coloured status LED
  • Non-frangible element fitted as standard (conforms to EN54)
  • Addressed with TCH-B100 Hand Held Programmer
  • Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX, sold separately)
  • Different colour options available
  • LPCB Approved to EN54

Certificates
