Fire Suppression System

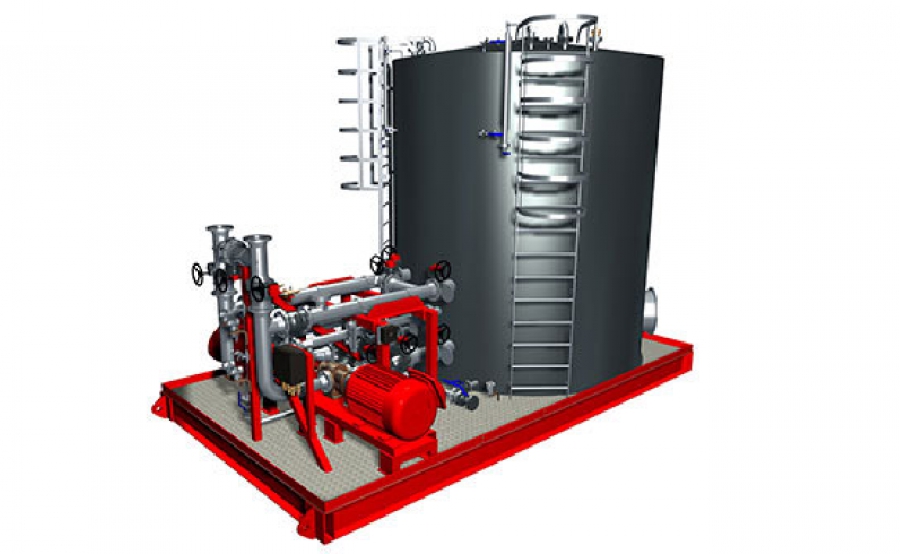

Foam Pump Skid

NARFOAMKAR designs and supplies balanced-pressure proportioning pump skids and in-line balanced-pressure (ILBP) proportioning pump skids for a wide range of applications. Our pump skids are designed to deliver large quantities of foam concentrate, accurately proportioned into the water stream.

NARFOAMKAR pump skids are built to customer specifications and/or according to National Fire Protection Association (NFPA) standards. Supplied with manual override capabilities, our pump skid systems operate over a wide range of flows and pressures and do not require manual adjustment.

Compatible with all NARFOAMKAR foam concentrates, our pump skids are fully tested at our factory and shipped ready to install.

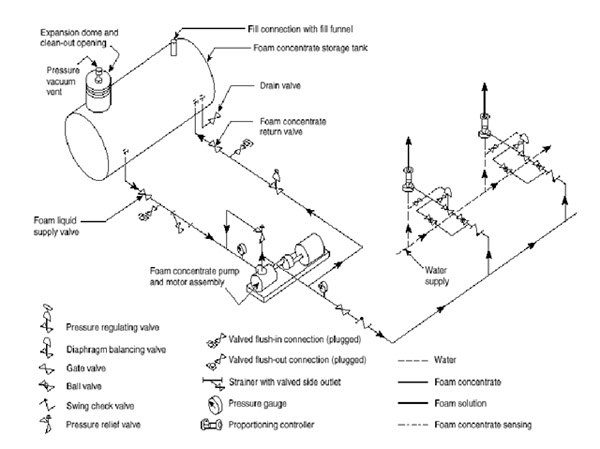

Foam Pump Skid Components:
A foam pump skid including following items as Minimum:
- Atmospheric storage tank (to store the foam concentrate)
- Positive displacement pump, drive by electric or diesel motor(to force the foam concentrate)
- Proportioner (to control proportioning of the foam and water with desired ratio)
- Diaphragm balancing valve (to control foam outlet pressure of downstream pressure)
- Interconnecting piping components (to connect above item within the skid)

Advantage of foam pump skid:
- The proportioner can be inserted into the line at any point between the water source and Discharge outlet Device.
- It can accommodate an almost infinite number of demands, each with a different size proportioner and wide range of flow.
- No adjustment required.

Available Options for Supply:
- Stainless steel or Polyethylene foam storage tank
- Balance pressure Proportioner or in-line balance proportioner
- Stainless Steel Piping components
- Interception motorized valve on tank outlet line
- Automatic control panel (for safe Area or Hazardous Area)

Ordering Information:
Please specify the following:
- Type of storage tank
- Capacity of storage tank
- Design & Working Pressure
- Whether required Interception motorized valve on tank outlet line
- Quantity & flow rate of Proportioner/s
- Type of foam and Foam mixing ratio (1% or 3% or 6%)
- Quantity & Specifications of Foam Pump/s
- Type & Specification of control panel
